V2403C Series

V2403C Series

Intel® 7th Gen Core™/Celeron® Industrial IoT embedded computers with power ignition control, 2 Mini PCIe expansion slots for wireless, SMA connectors
V2403C Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-v2403c-series-datasheet-v2.2.pdf
  • Intel® Celeron®/Intel® Core™ i3/i5/i7 high performance network video recorder for rail-wayside and in-vehicle applications
  • Multiple interfaces: Dual display (HDMI, DP), 4 serial ports, 4 GbE ports, 4 DIs, 4 DOs, 4 USB, and 2 Mini PCIe slots for wireless
  • Power management with Ignition on/off delay (externally accessible rotary switch)
  • E1 Mark, ISO 7637-2, and MIL-STD-810G compliant
  • Compliant with EN 50121-4
View More
Product ID Product Description Availability Price Qty
V2403C Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

The V2403C Series embedded computers are built around an Intel® Core™i7/i5/i3 or Intel® Celeron® high-performance processor and come withup to 32 GB RAM, one mSATA slot, and two HDD/SSD for storage expansion.The computers are compliant with EN 50121-4, E1 mark, and ISO- 7637-2standards making them ideal for rail-wayside and in-vehicle (excepttrains) applications.

V2403C computers are equipped witha rich set of interfaces including 4 gigabit Ethernet ports, 4 RS-232/422/485serial ports, 4 DIs, 4 DOs, and 4 USB 3.0 ports. In addition, theyare also provided with 1 DisplayPort output and 1 HDMI output with4K resolution.

Reliable connections and good power management are key to in-vehicleapplications. The computers are provided with 2 mPCIe wireless expansionslots and 4 SIM-card slots to establish redundant LTE/Wi-Fi connectivity.In terms of power management, startup and shutdown delay mechanismshelp in avoiding system malfunction and damage.

PowerManagement With Ignition Control Switch

The V2403C computers come with power management capability that usesan externally accessible rotary switch on the front panel. You canuse the switch to configure power ignition on/off delays in the computerfor in-vehicle applications. This feature is vital to protect thecomputer against high/low pulses and waveforms, ensure longevity ofbatteries, and complete data preservation prior to an unplanned shutdown.

Appearance

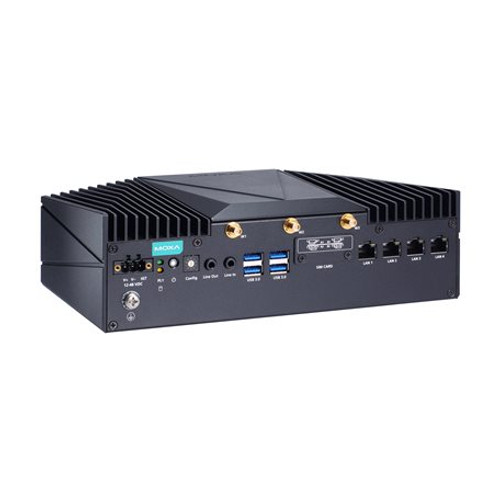

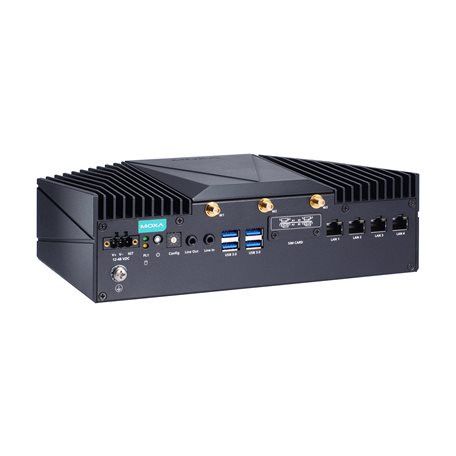

Front View

Rear View
