VPort 464 Series
4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60°C

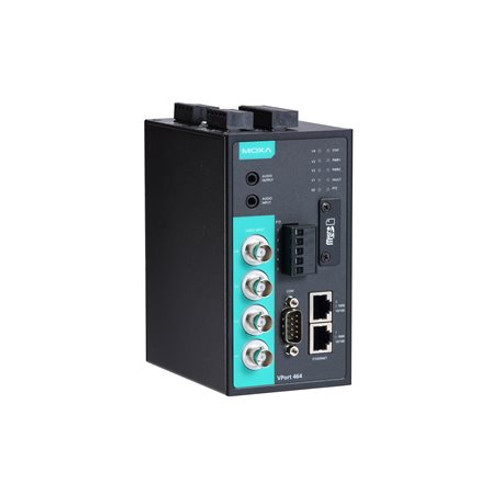

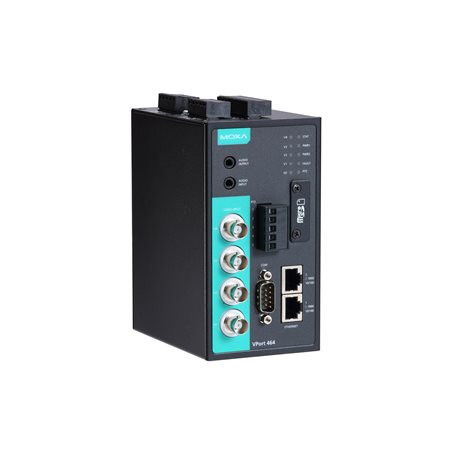

Image of VPort 464
Free Ground Shipping on U.S. Orders over $99 $1,459.76 IN STOCK: 12 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-vport-464-series-datasheet-v1.0.pdf
  • Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
  • Video latency under 200 ms
  • 2 Ethernet ports for cascading or Ethernet port redundancy
  • DynaStream™ for optimized network efficiency
  • ONVIF support for standardization and interoperability
  • Local storage capability with microSD card slot
  • Industrial design with -40 to 75°C operating temperature
View More
Accessories Overview Specifications

Introduction

The VPort 464 4-channel industrial video encoder uses the H.264 video compression algorithm to provide the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various requirements, each channel of the VPort 464 can support 2 video streams simultaneously or you can merge all 4 channels into 1 quad view stream using H.264 and MJPEG compression formats, providing greater flexibility for a variety of uses, including viewing, recording, and analysis. The rugged industrial design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 464 suitable for harsh environments.

The VPort 464 comes with two Gigabit Ethernet ports and supports cascade mode and network redundancy. In addition, Moxa’s innovative DynaStream™ technology lets you change the video frame rate automatically, allowing you to control your network bandwidth budget and simplify network system management. The CBR Pro™ function guarantees the lowest packet loss for limited bandwidth transmissions to ensure that images will not exhibit the mosaic effect.
