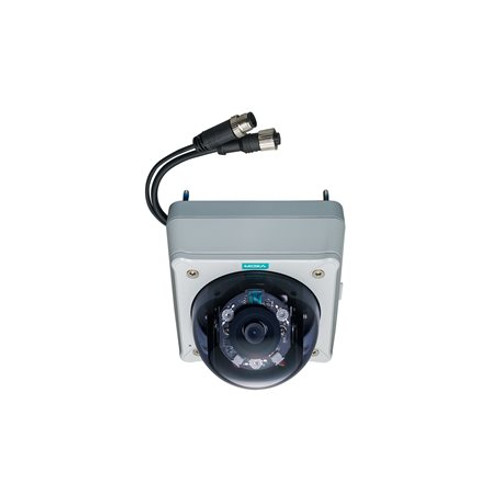

VPort P16-1MP-M12 Series EN 50155, HD image, rugged IP cameras
Features and Benefits
moxa-vport-p16-1mp-m12-series-datasheet-v1.0.pdf
  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps

  • Built-in light sensor for day & night images

  • High quality video imaging with DNR and WDR

  • Up to 3 H.264 or MJPEG independent video streams

  • DynaStream™ for optimized network efficiency

  • CBR Pro™ for high image quality in limited bandwidth transmissions

  • Supports DHCP options 66 and 67 for auto-configuration

  • ONVIF support for standardization and interoperability

View More
Product ID Product Description Availability Price Qty
VPort P16-1MP-M12 Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

The rugged VPort P16-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications, and feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power inputs, IP66 rain and dust protection, and day & night image capability.
