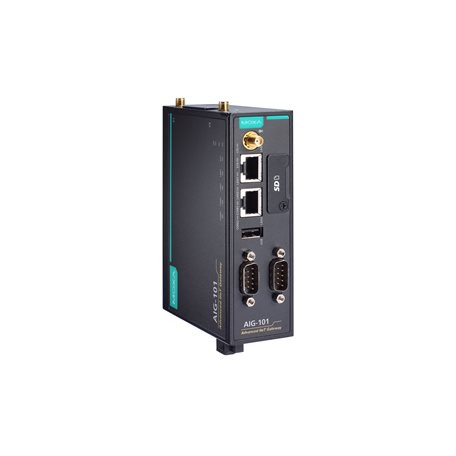

Moxa AIG-101 Series

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateways

Free Ground Shipping on U.S. Orders over $99

Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-aig-101-series-datasheet-v1.0.pdf

Supports generic MQTT client
Supports MQTT connection with built-in device SDKs for Azure/AWS cloud
Supports Modbus RTU/ASCII/TCP master/client
Supports Modbus TCP server
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Supports data buffering using store and forward and datalogger
Seamless integration with Moxa ioLogik /UPort devices to easily extend I/O and serial interfaces
Built-in data processing function to eliminate programming efforts
-40 to 70°C operating temperature range
LTE Cat.1 US, EU, and APAC models available

	Product ID	Product Description	Availability	Price	Qty

Overview Specifications Accessories

Introduction

The AIG-101 Series gateways are entry-level IIoT gateways that connect Modbus RTU/ASCII/TCP devices to cloud platforms and applications such as Azure, AWS, and MQTT. The AIG-101 as a Modbus master can integrate existing Modbus devices with cloud platforms, effortlessly collecting and transmitting data to the Azure and AWS clouds. Moreover, the gateways also support the Modbus TCP slave mode, enabling simultaneous transmission of data to a cloud platform and local SCADA system.

Effortless Extension of I/O and Serial Interfaces

As the number of field sites increases, additional I/O or serial interfaces are required to connect devices, such as sensors, meters, and inverters, for collecting and processing the large amount of data that is generated. A typical approach is to install remote I/O and device servers to extend the interfaces, but the configuration settings required can be a nightmare for most users. To provide an extremely simple configuration process for interface extension, AIG-101 gateways have better integration and come with an intuitive wizard that can configure Moxa ioLogiks and UPorts with just a few clicks.

Built-in Ready-to-use Data Preprocessing Functions, No Coding Required

Energy Management Systems mainly collect energy data such as average power generation and energy efficiency. This data is then used to display on-site conditions, observe the energy trend, and optimize energy usage. Most edge systems require additional programming to process the data required by energy management system. The AIG-101 can preprocess the edge data and directly send meaningful data to the energy management systems. The intuitive UI enables easy configuration of the IIoT gateway settings to collect and process data.

Secure Remote Access Reduces Maintenance Costs

The AIG-101 comes with powerful troubleshooting tools to diagnose issues with protocol statuses and capture and analyze traffic packets, enabling engineers to remotely identify the root cause of issues and quickly bring the operation back to normal. The tools also provide secure remote access to the AIG-101 to enable the maintenance engineers to directly access it, saving a lot of time and effort and reducing system downtime in energy management systems.
