CSM-400-1213-T

MOXA CSM-400-1213-T

CSM-400 Series
10/100BaseT(X) to 100BaseFX slide-in management module converter, multi-mode ST connector, -40 to 75°C

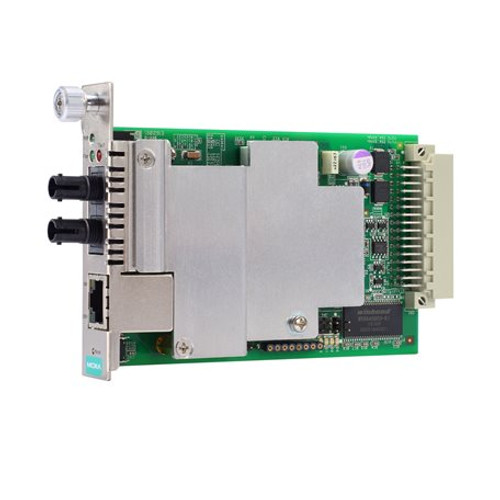

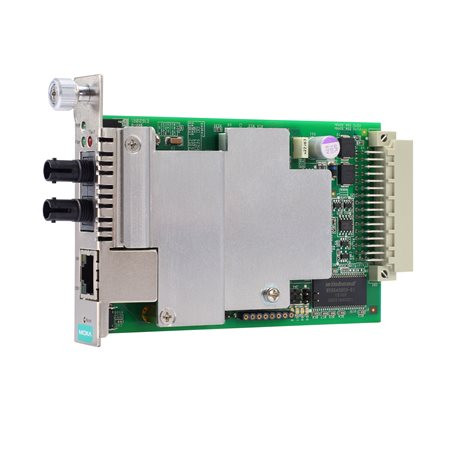

Image of CSM-400-1213-T
Free Ground Shipping on U.S. Orders over $99 $378.75 ON BACKORDER Estimated Availability: 09/08/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-csm-400-series-datasheet-v1.3.pdf
  • LFP (Link Fault Pass-Through) and FEF (Far End Fault)
  • Supports store-and-forward mode and pass-through mode
  • Auto-negotiation
  • Supports IEEE 802.3AH OAM protocol
  • Plug and play
  • Hot-swappable
  • IP-based remote management
  • Supports WDM type modules
View More
Overview Specifications Accessories

Introduction

The CSM-400 Series consists of slide-in Ethernet-to-fiber managed media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack System™ chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost.
