MDS-G4020-4XGS Series

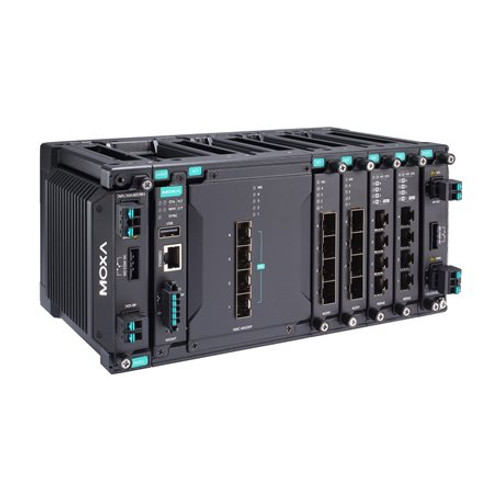

MOXA MDS-G4020-4XGS Series

4XG+16G-port Layer 2 full Gigabit modular managed Ethernet switches
MDS-G4020-4XGS Series
VIEW MODELS
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-mds-g4020-4xgs-series-datasheet-v1.4.pdf
  • Multiple interface type modules for greater versatility
  • Up to 16 Gigabit Ethernet ports or SFP slots plus 4 embedded 10G Ethernet ports
  • Tool-free design for effortlessly adding or replacing modules without shutting down the switch
  • Ultra-compact size and multiple mounting options for flexible installation
  • Passive backplane to minimize maintenance efforts
  • Rugged die-cast design for use in harsh environments
  • Intuitive, HTML5-based web interface for a seamless experience across different platforms
  • High EMC immunity compliant with IEC 61850-3 and IEEE 1613
  • Hardware-based IEEE 1588 PTP for high-precision time synchronization
View More

Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The MDS-G4020-4XGS Series modular switches support 410GbE + 16 Gigabit ports, including 4 embedded ports, 4 interfacemodule expansion slots, and 2 power module slots to ensure sufficientflexibility for a variety of applications. The highly compact MDS-G4020-4XGSSeries is designed to meet evolving network requirements, ensuringeffortless installation and maintenance, and features a hot-swappablemodule design that enables you to easily change or add modules withoutshutting down the switch or interrupting network operations.

The multiple types of interfacemodules (RJ45, SFP, and PoE+) and power units (24/48 VDC and 110/220VAC/VDC) provide even greater flexibility as well as suitability fordifferent operating conditions, delivering an adaptive full Gigabitplatform that provides the versatility and bandwidth necessary toserve as an Ethernet aggregation/edge switch. Featuring a compactdesign that fits in confined spaces, multiple mounting methods, andconvenient tool-free module installation, the MDS-G4020-4XGS Seriesswitches enable versatile and effortless deployment without the needfor highly skilled engineers. With multiple industry certificationsand a highly durable housing, the MDS-G4020-4XGS Series can reliablyoperate in tough and hazardous environments such as power substations,mining sites, ITS, and oil and gas applications. Support for dualLV or HV power modules provides redundancy for high reliability andavailability and also offers flexibility to accommodate the powerrequirements of different applications.

In addition, the MDS-G4020-4XGSSeries features an HTML5–based, user-friendly web interface providinga responsive, smooth user experience across different platforms andbrowsers.
