NPort 6150

Moxa NPort 6150

NPort 6100/6200 Series
1-port RS-232/422/485 to Ethernet Secure Serial Port Server, w/ adapter

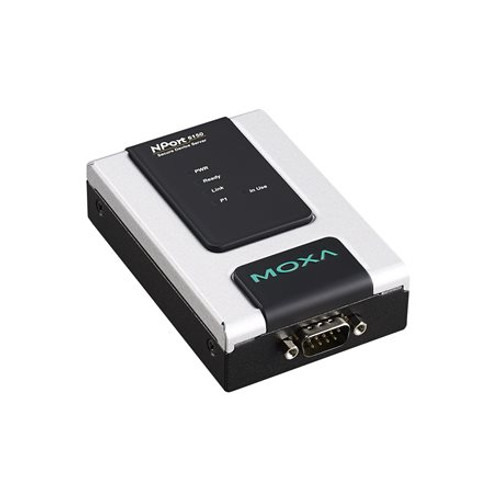

Image of NPort 6150
Free Ground Shipping on U.S. Orders over $99 $315.92 IN STOCK: 4 Units ON ORDER: 20 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-nport-6100-6200-series-datasheet-v1.5.pdf
  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Supports nonstandard baudrates with high precision
  • NPort 6250: Choice of network medium: 10/100BaseT(X) or 100BaseFX
  • Enhanced remote configuration with HTTPS and SSH
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Generic serial commands supported in Command-by-Command mode
  • Security features based on IEC 62443
View More
Overview Specifications Accessories

Introduction

The NPort® 6000 device servers use the TLS and SSH protocolsto transmit encrypted serial data over Ethernet. The NPort® 6000’s3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interfaceselected from an easy-to-access configuration menu. The NPort® 60002-port device servers are available for connecting to a 10/100BaseT(X)copper Ethernet or 100BaseT(X) fiber network. Both single-mode andmulti-mode fiber are supported.

Secure Data Transmission

For many applications, guaranteeing secure data transmissionis an important concern when connecting serial devices to a network.To answer this concern, the NPort® 6000 supports the TLS and SSH protocols,which work by encrypting data before sending it over the network.With the NPort® 6000, users can rest assured that serial data is transmittedsecurely over both private and public networks.

Zero Data Loss If Ethernet Connection Fails

The NPort® 6250 device servers help guaranteereliability by providing users with secure serial-to-Ethernet datatransmission and a customer-oriented hardware design. If the Ethernetconnection fails, the NPort® 6250 will queue all serial data in itsinternal 64 KB port buffer. When the Ethernet connection is re-established,the NPort® 6250 will immediately release all of the data in the bufferin the order that it was received. Users can increase the port buffersize by installing an SD card.
