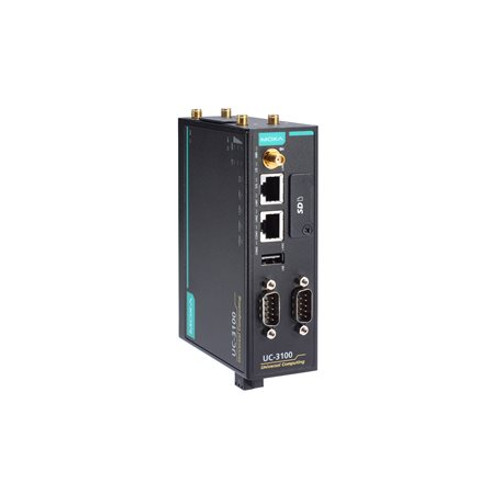

UC-3101-T-US-LXUC-3100 Series Arm-based LTE Cat. 1 computer for US (AT&T), 1 GHz CPU, 1GB RAM, 4 GB eMMC, 2 Ethernet, 1 serial port, 1 USB port and -30 to 70°C operating temperature
FREE SHIPPING on orders over $99 $538.00
Features and Benefits
  • Armv7 Cortex-A8 1000 MHz processor
  • Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1 for the US, EU, and APAC regions
  • Bluetooth 4.2 support
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • Industrial CAN 2.0 A/B protocols supported
  • Robust root file system to prevent the system from being bricked due to a firmware update failure
  • -30 to 70°C system operating temperature
  • Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
  • Long-term Linux support until 2027; includes bug fixes and security patches
View More
Accessories Overview Specifications


Moxa's UC-3100 Series computers can be used as smart gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes 9 models, each supporting different wireless options and protocols. The UC-3100's advanced heat dissipation design makes it suitable for use in temperatures ranging from -30 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize the data pre-processing and data transmission capabilities of your applications in most harsh environments.

The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3100 supports the following software features, allowing you to use the most suitable configuration for your application.

  • High VPN performance; more than 70 Mbps Ethernet throughput with AES-256 encryption

  • Robust file system to prevent the system from being bricked due to a firmware upgrade failure

  • Real COM mode to provide a control interface to Moxa's NPort products

In addition, Moxa provides 10 years of Linux OS support. With a new version of the Debian repository released on an average every 2 to 3 years, you can create a reliable solution that will be supported now and long into the future.


  • Remote Terminal Unit (RTU)

  • Data acquisition

  • M2M communication (smart gateway)

  • Digital signage

  • Factory automation

  • In-vehicle monitor/data logger (transportation)

  • Programmable router

  • Energy usage optimization

  • Predictive maintenance

  • Asset management
